Features

  • 17 Degree Beam Angle
  • Improved Output
  • Separate Color Gobo Wheels
  • Compact Lightweight Design Easily Portable
  • Run Dmx512, Stand Alone (Sound Active) Or Master Slave

Description

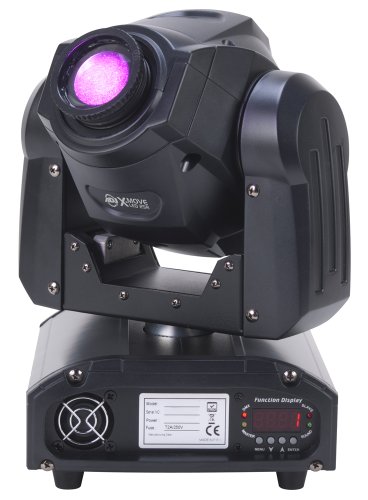

X-MOVE LED 25R

The LED revolution continues with ADJ’s X-Move LED 25R with 6 rotating, replaceable gobos and a 25W white LED source that, due to the latest advancements in LED technology, is 2 times brighter than the X-Move LED Plus. It’s hard edge beam is similar to a traditional halogen or discharge lighting effect with a fraction of the power draw (75W) or the hassle of changing out light bulbs (LED source rated at 50,000 hours).

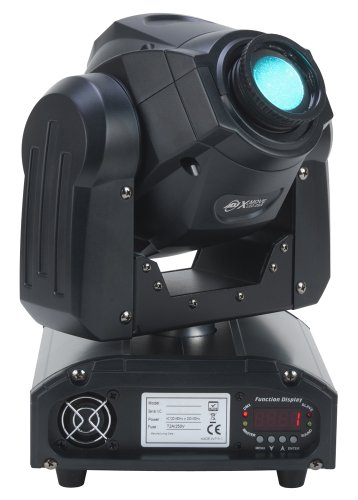

Angle View

Angle View

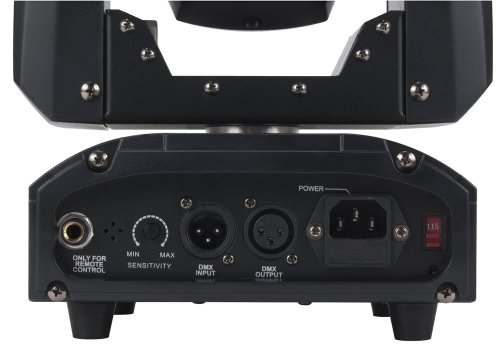

Outputs

Input

FX Shot

FX Shot

The X-Move LED 25R is lightweight and small in size making it extremely mobile, and can be set up by any size entertainer. It’s feature packed with exciting built-in light shows when used in Sound Active or linked in Master/Slave mode, offers 9 DMX channels, 4-Button LED DMX menu, Dimming, Shutter and Gobo Shake effect.

Specifications:
  • High powered DMX-512 moving head with a bright 25W CREE white LED
  • 8 colors + white
  • 6 rotating, replaceable gobos + spot
  • Separate Color & Gobo Wheels
  • Gobo scroll mode
  • 17-degree beam angle
  • Auto X-Y repositioning
  • 9 DMX Channels
  • 3 Operational modes: DMX-512, Master/Slave & Sound Active

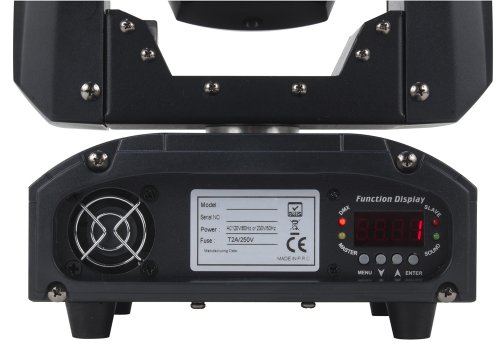

  • 4-Button menu system LED Display making it easy to navigate
  • Built-in lighting programs
  • Gobo Shake effect
  • Gobo size: 23.8mm (19mm viewable / 0.2mm thickness)
  • 540° pan / 270° tilt (8-bit)
  • Manual Focus
  • Shutter: Pulse effect; random strobe slow to fast
  • Dimming: 0% – 100%
  • Fan Cooled
  • Stepper motors with micro stepping
  • Compatible with American DJ UC3 Series easy-to-use controllers (sold Separately)
  • Runs extremely cool! – NO Duty Cycles! – Run all night!
  • Power consumption: 75W
  • Switchable voltage: (120V/60Hz or 230V/50Hz) – IEC socket
  • LED Source: 25W CREE White LED (50,000 hour rated)
  • Dimensions (LxWxH): 8.75” x 8” x 12.75” / 221 x 202 x 320mm
  • Weight: 14 lbs. / 6.2 kgs.
  • Specifications subject to change without notice
